About 2 years ago, I introduced you to the architecture of CenterDevice , and it is now time for an update.
A quick refresher for those who do not want to read that, now outdated, article:
CenterDevice is a startup by codecentric which provides document storage in the cloud. It really shines for documents like invoices, orders, project management, presentations etc. where the powerful search engine finds you, what you are looking for without the need for any manually maintained structures. It provides plenty of means to share documents within or outside your organisation. All documents are encrypted and stored in Germany (if that matters to you).
TL;DR: In November 2014 we released version 2 of our API, relaunched all clients and moved our datacenter (virtually and physically). Some tech changed, some stayed the same. Better continue reading 🙂
Our Clients

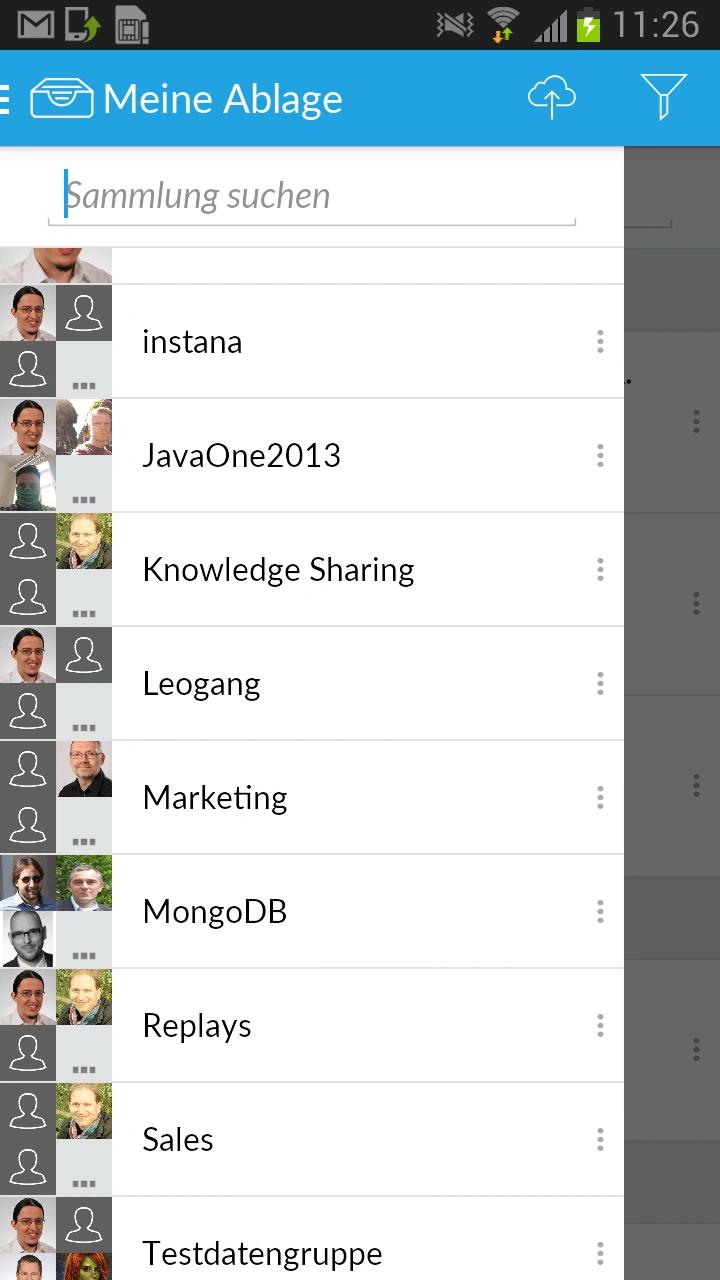

CenterDevice offers many different clients to its users. With the relaunch we finalized the migration to a new look and feel and introduced a new frequently asked for concept called “collection”. Before “collections” we assumed organizing people and documents in a “group” would be sufficient, but it turned out that those are two different things. Now administrators can organize people in “groups”, and everybody can put documents into “collections”.
Android

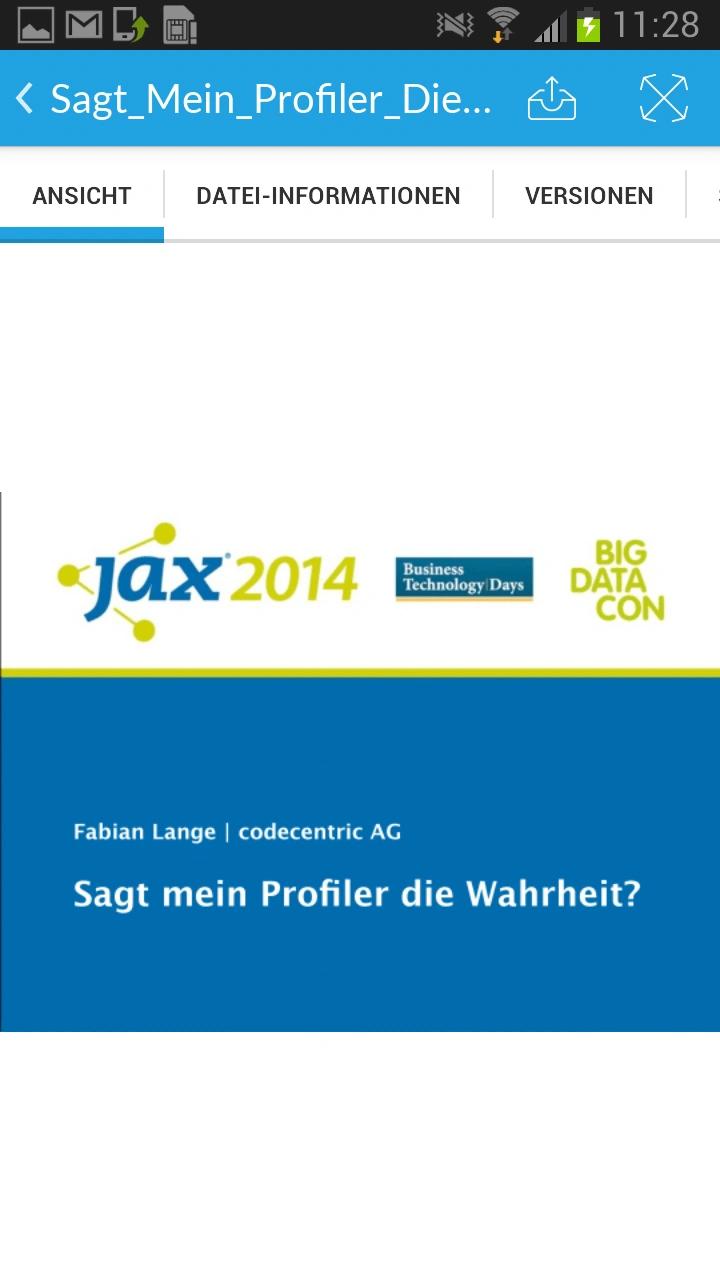

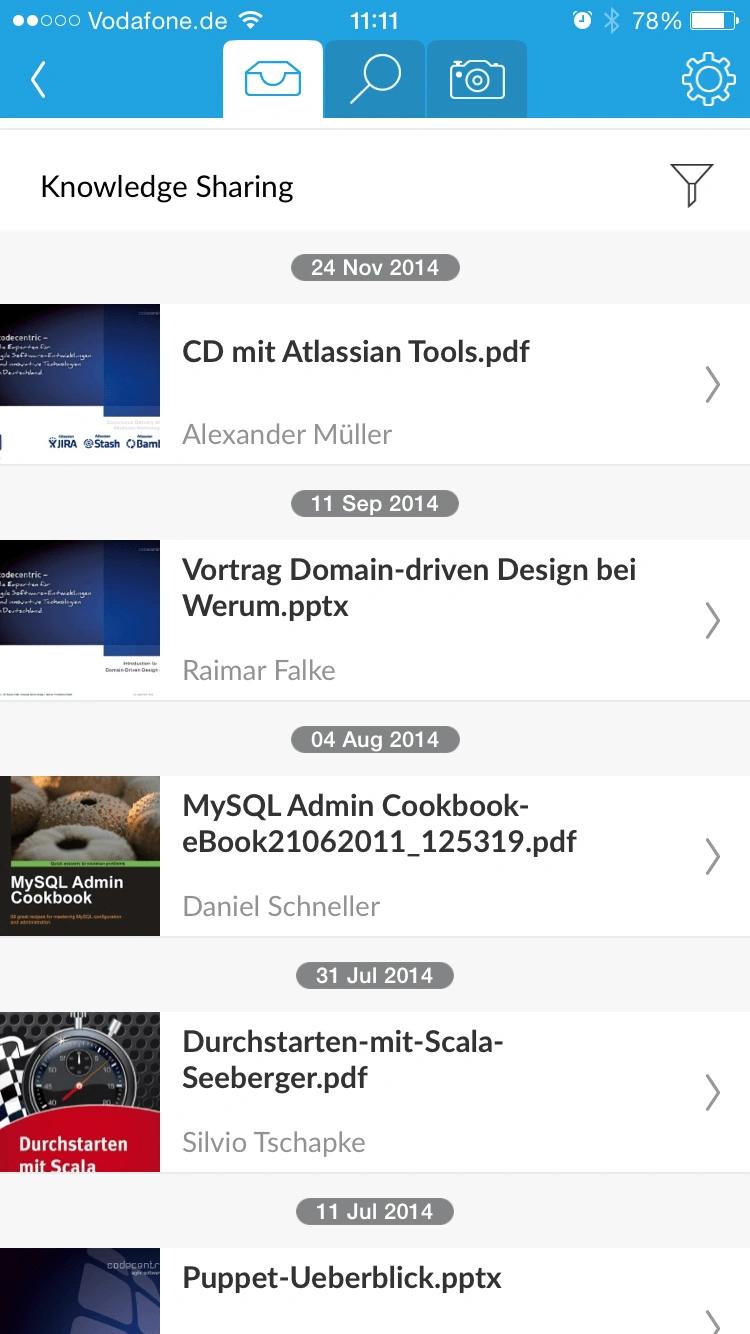

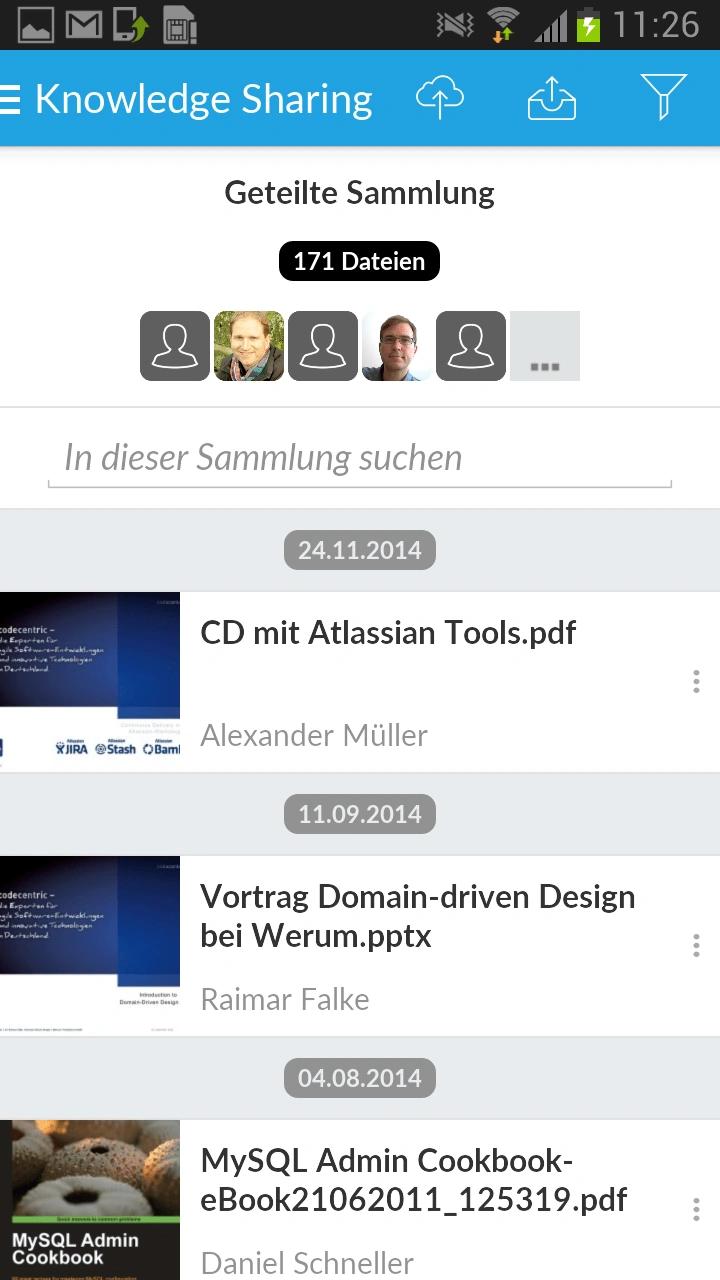

Among a unified look across platforms, we added powerful PDF viewing functionality to the Android app. The older version used preview images for each page, but now the app just downloads the PDF to display it. This brings increased performance, as well as added functionality.
When we went to implement mobile apps 3 years ago, we decided to go with native apps, rather than using a crosscompiler like Phonegap or Apache Cordova or even HTML5 apps. At least at that time it was not clear how good features like certificate pinning, local storage, camera access and preview integration for different file formats could have worked. We stuck to the plan and still have no intentions to rewrite the apps in any non-native way. Getting the app into the play store never was a problem. The shared usage of library code between Android, desktop and web apps is a plus. The downside with Android development is still the slow emulator, but it is slightly compensated by the easier distribution of test builds. The PDF viewing technology used is the commercial Qoppa PDF viewer.
iOS

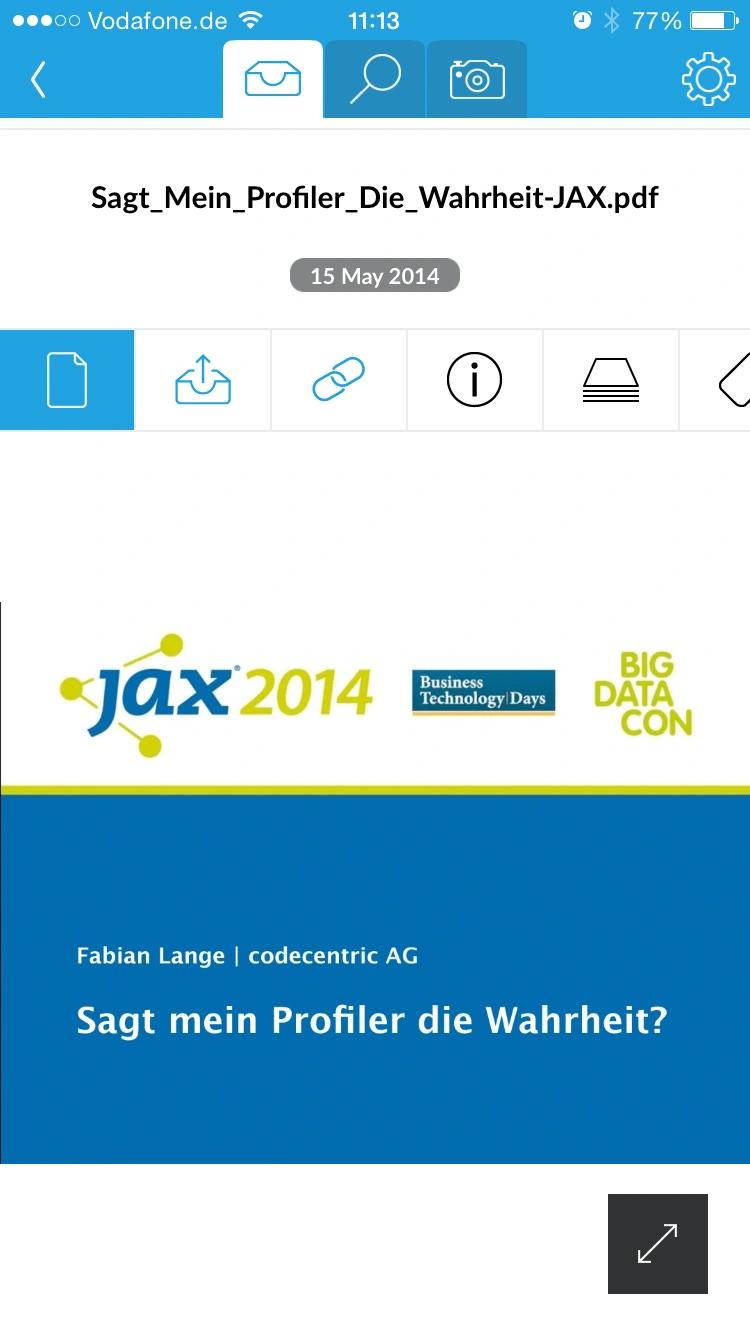

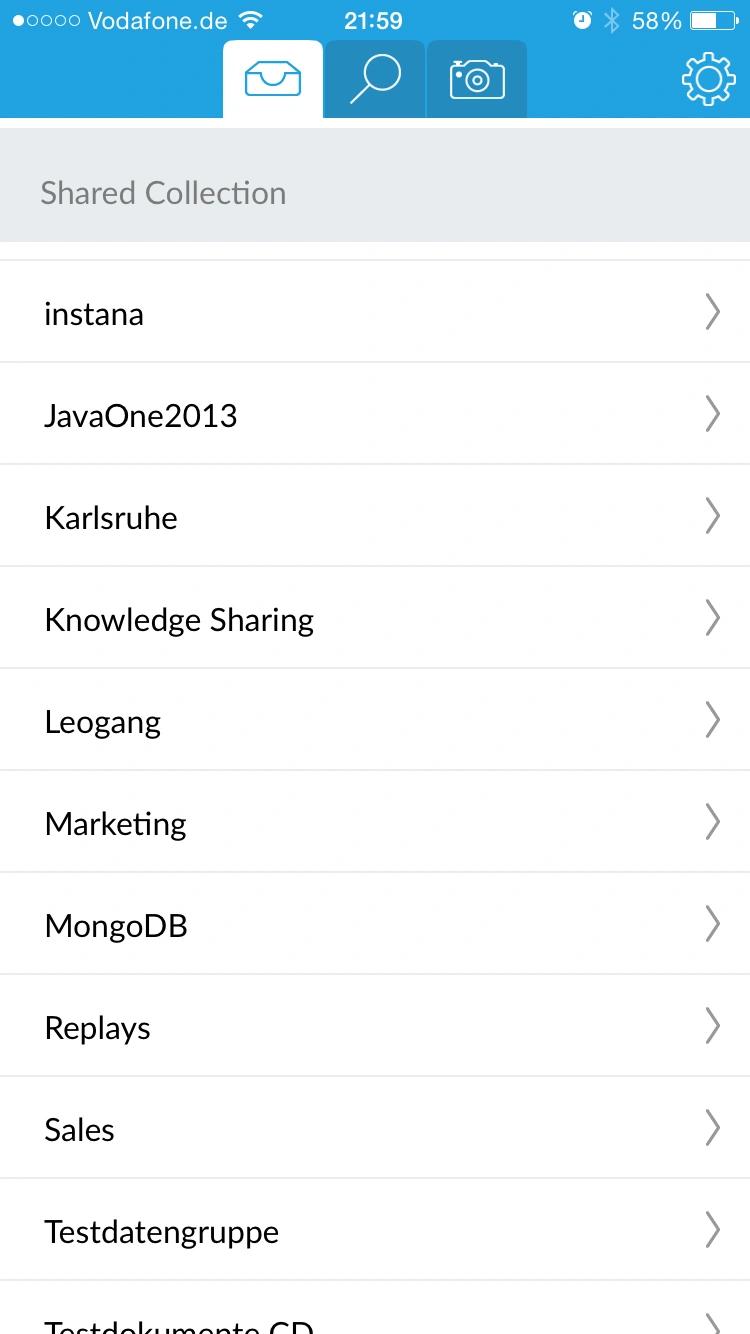

The iOS app now supports phones and tablets with a common look and feel. Feature wise the most important addition is the added sharing functionality.
Apple gave us a lot of headaches with the release of our relaunch app, which was in development for a year. We planned with plenty of headroom for the approval process, but it took much longer. The main problem was, that this is now a new “app”: It has a new AppID because it is an universal app, rather than a iPad only app. This caused the big review process to kick in, which applied new arbitrary checks, which seemed ok two years ago. In the end we needed an expedited approval to be “only one week late”, which is after 4 weeks of review. Due to the slow adoption of iOS8, this app supports iOS7 and 8 and does not yet use any iOS8 specifics. Distribution of test builds is still a mess, sorry Apple. For viewing PDFs we are experimenting with the open source vfr/Reader as an alternative to the commercial pspdfkit.
Desktop

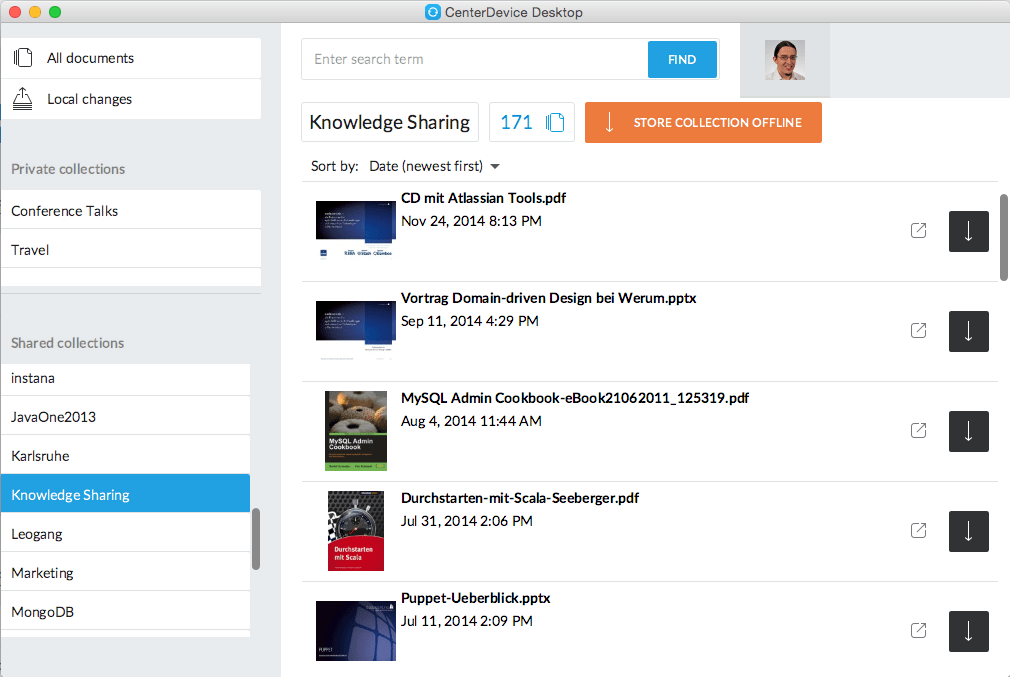

A new member of our client family is the desktop application. Frequently requested, it seems that working with files is still a desktop and offline thing. The application will keep local copies of your documents in sync with what is on the server, so you always have access to documents even when you are offline. It will support monitoring certain local folders for automatic file upload soon. You can get it at www.centerdevice.de/download .
The Desktop Client is a JavaFX8 Application which comes with a bundled JRE. After trying various installer solutions we settled with a custom mechanism to allow separate updates of the JRE and the application code. JavaFX8 is finally a usable platform and was very easy to create the UI with. We used a minimalistic, slightly adopted version of Adam Biens “afterburner.fx” and Google Guice for dependency injection. Some of the data queried from the server is stored in a local Derby database, while the downloaded documents will reside as files in a directory. For now we decided to hide that directory and discourage manual modifications, because there are many tricky edge cases involved when the Desktop Client is actually not aware that you are about to modify a file.
Web

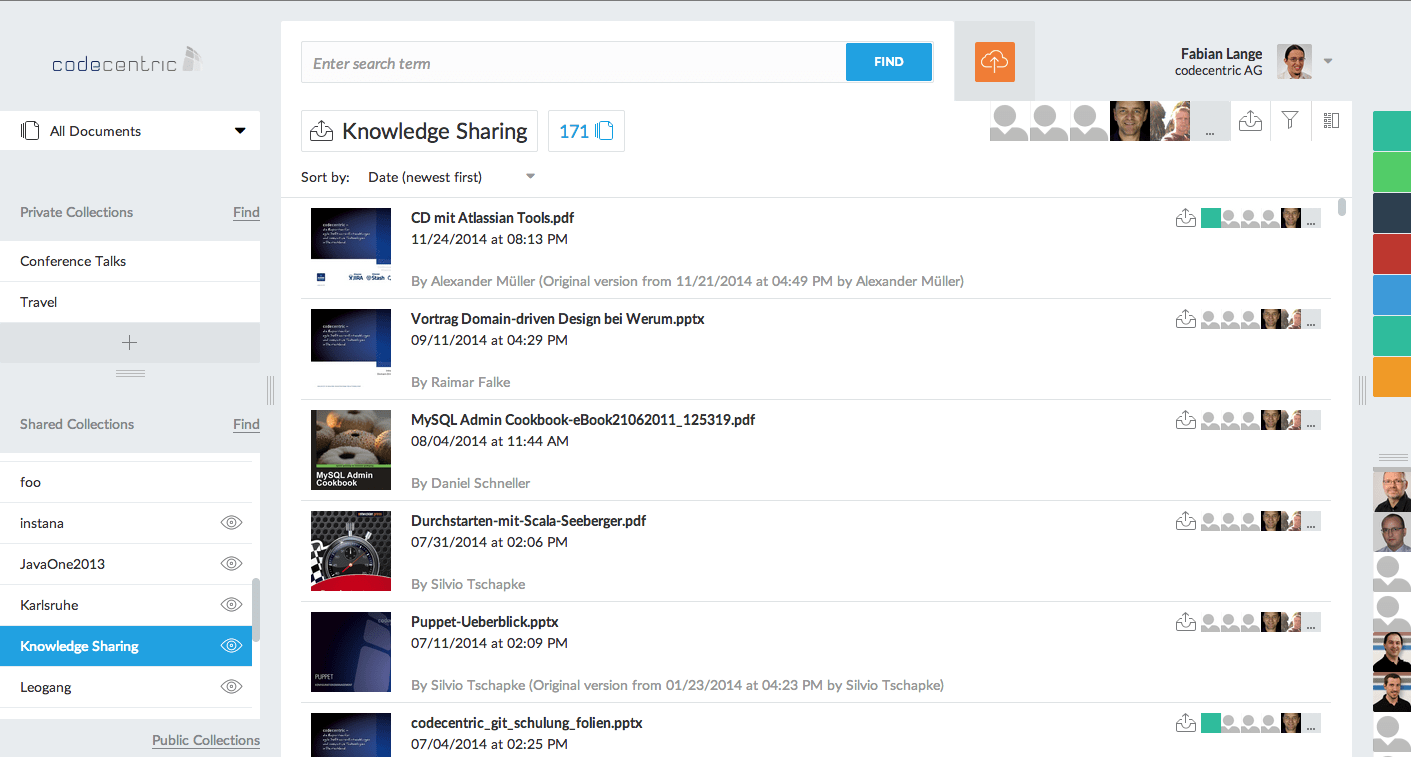

The biggest feature set of all apps is still in web hand. Some of the more administrative workflows are only available here. The left hand side navigation is now hosting collections, while groups and users are on the right hand side. There are a few view modes for you to choose, and you can resize it to your liking.
Being a complex web application, it is unfortunately also the slowest of our apps. Especially in Internet Explorer. If you really need IE, I feel sorry for you. We use Vaadin 7.3 and a customized Valo Sass Theme. After multiple years of debugging and hotfixing, we have finally given up on using Vaadin push. If it works for you, you are lucky. It did not work for us, with all the potential network proxies and browsers our end customers use. We are now using a 5 second polling, which is “good enough” for us. If we need to poll faster we switch the interval dynamically. That is why we are looking forward to Vaadin 7.4, where polling no longer causes layout phases . Still I think Vaadin is a good choice for the type of application we have here at our hand, it allows a very easy integration into a Java stack, and using Node or Angular would require more work on that end. However abstractions come at a cost and debugging Vaadin might not be your cup of tea 🙂 For viewing all types of PDF files, we incorporate the open source mozilla/pdf.js viewer.
Our API
And there are a few third party clients already using the CenterDevice API. Unfortunately there is none which I can talk about, but if you are interested, we have published our API, so you could get started developing a custom extension:
Click on the button to load the content from public.centerdevice.de.
(https://public.centerdevice.de/dcebab04-d000-432b-83ad-285e32070cbc )
The API lives at https://api.centerdevice.de/v2 but without valid auth tokens you will not get far 🙂
It is still implemented using Jersey. Versioning is implemented using a master class for each version which knows all valid resources. This pattern allows us to either reuse the same Resource classes for different API versions, or do customization by composition or inheritance. Its pretty flexible, but also difficult to judge when to apply which pattern for differences in versions. Being backwards compatible is a great challenge everybody should go through.
Our Backend

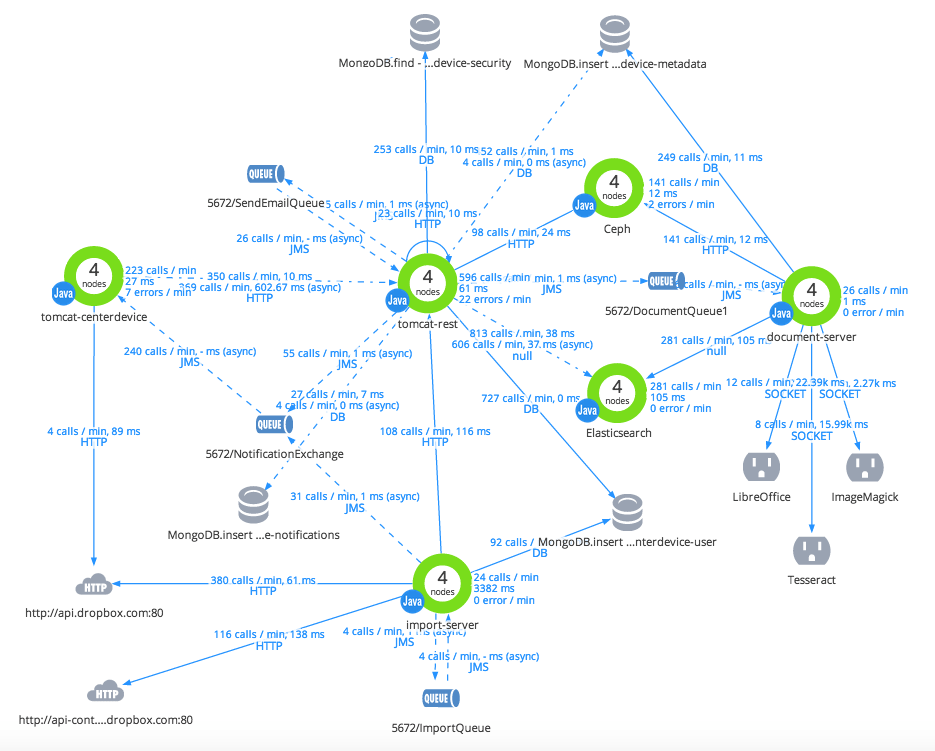

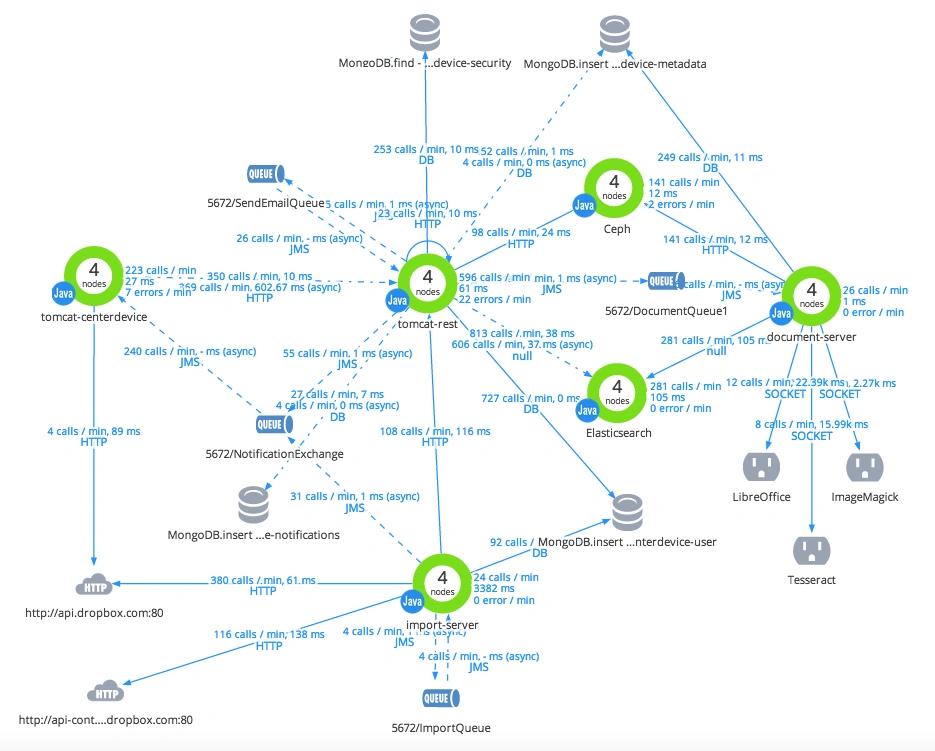

If you compare this picture to the last published architecture, you see a few changes, but nothing major. We still have the separation between Web Servers (called tomcat-centerdevice in the picture) and REST Servers (named tomcat-rest). The Web Servers host the server side of the Vaadin applications, as well as a few other pages and admin interfaces. The main difference from the REST Servers is that they maintain state, and require session stickyness. Plans are there to put the sessions into memcached, but so far were not at priority.
The REST Servers serve our REST API. All our clients use the above linked public API, with only a few exceptions for private management functionality, which uses a private REST API. As you can see in the picture, there is no direct access to any data store from the frontends, which increases security and allows us to scale better.
There are 3 data sources for the rest server:
- Elasticsearch for all kinds of search related queries.
- MongoDB for all metadata and user data.
- Ceph as the storage for all documents and various previews.
Elasticsearch replaced Apache Solr. Elasticsearch is very easy to maintain and fast. It finds its cluster members automatically and even if it doesn’t, a simple restart solves most of the issues. We had some problems when cluster members died, but it never affected production and was straightforward to resolve. Another nice thing about Elasticsearch is that it allows many index related operations on the fly. Like changing the schema. Christian has written a great blog describing our index handling strategy . We have a few more blog posts about Elasticsearch in case you are curious.
MongoDB is still going strong, but when we moved our cluster (more below) we noticed again that it was not built for administration 🙁 The schema free data storage is great, but for example taking and restoring a backup takes days (!) when authentication is enabled. Perhaps we were the only ones on the planet to run with mongo auth. Who knows. Besides that, my colleagues documented a lot of best practices in other blog posts .
Ceph is our replacement for Gluster. It is a distributed key-value store designed to hold binary artefacts. You could use it as file system, however that is not recommended. We use it as Swift compatible API using RadosGW. Whatever is stored to Ceph (mainly your original documents and preview images/pdfs of them) is encrypted using ChaCha20 256Bit. ChaCha20 is faster than AES if no hardware acceleration is used, and it is an open, crypto analyzed mechanism, in contrast to AES, which is still not proven to not contain a backdoor. Ceph performs really good, as you can find in Lukas Benchmarking Post . It is really surprising to figure out that a networked file system is actually much faster than local discs. However, Ceph is quite resource intensive during cleanup, maintenance or failover, so even when it looks like it is disc only, it actually requires some amount of CPU and is best placed on machines dedicated to “being the file system”.
Whenever a new document is uploaded, the REST Server sends the Document Server a message to start processing the document. The actual tasks executed on a document depend very much on its mimetype, the most important ones are:
- Apache Tika for text extraction.
- Tesseract OCR if Tika was unable to find text.
- LibreOffice to create PDFs out of document formats.
- ffmpeg to convert various video formats.
- Imagemagick + Ghostscript to create preview images out of almost anything.
All of those tools really work great, but are really tricky to set up and avoid regressions when some magic command line flags change. Sometimes the queue to the document server fills up a bit (it is a Rabbit MQ beneath), so we implemented a mechanism which will prefer processing requests from other users over requests from the same user over and over again, so everbody gets a fair share of processing power.
A new piece in the infrastructure is the Import Server. Users can add a Dropbox oAuth Token via the web interface (that is why we talk to dropbox from there) and the Import Server will upload selected documents asynchronously. The Import Server is designed to work with any third party data provider. We have prototypes for google drive and instagram, but they are not productified yet.
Another part not visible on the picture are e-Mail servers, which handle incoming mail uploads. You can generate a mail upload alias in the Web UI, to which you can mail attachments to. These attachments get extracted and uploaded to the REST server from the mail servers. The same mail servers are also responsible for sending out notification/subscription e-mails.
Our Infrastructure

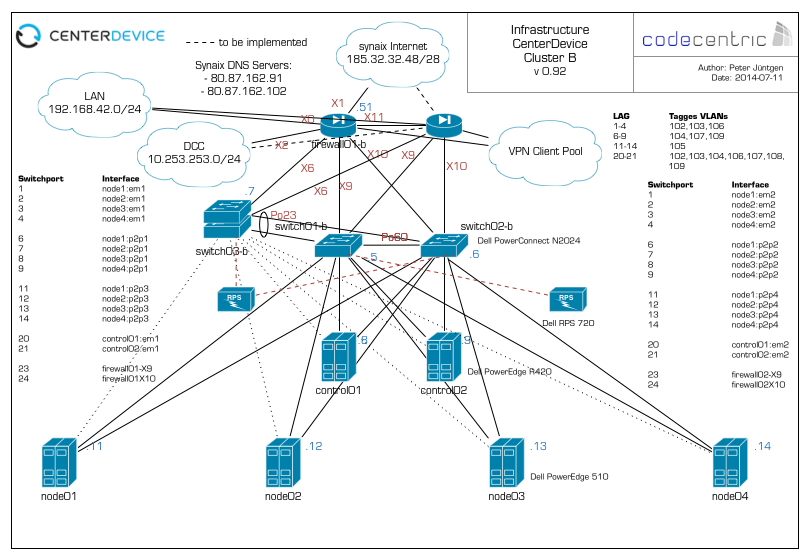

We also moved now to a completely virtualized infrastructure. But of course a virtualized infrastructure needs to sit on physical infrastructure. For that we have a mostly active-active HA setup for all networking and management hardware:

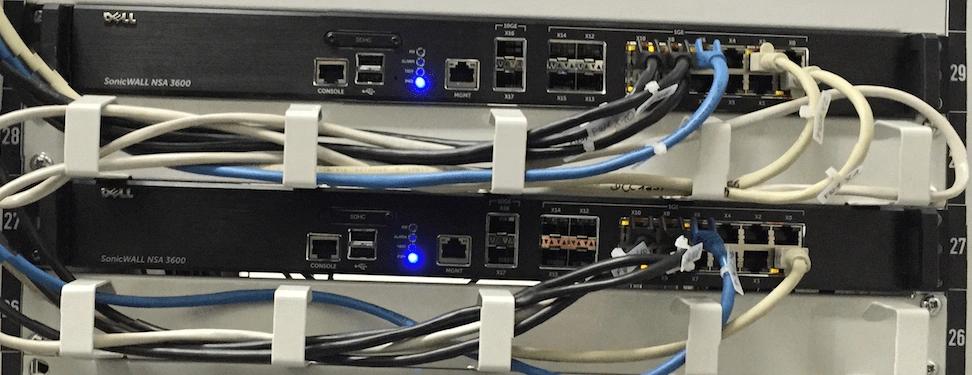

- Firewalls: 2x Dell Sonicwall NSA 3600.

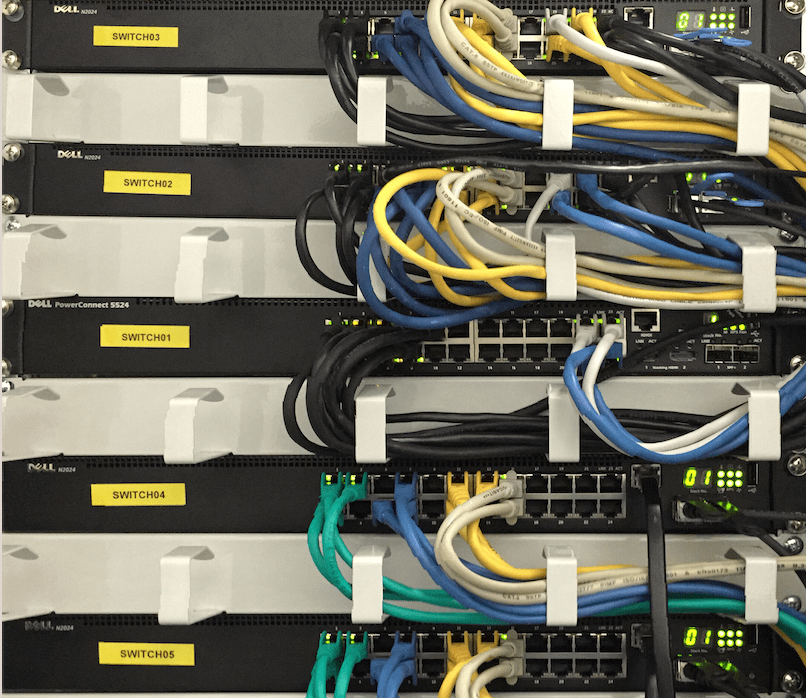

- Switches: 4x Dell Networking N2024, 1x Dell Power Connect 5524.
- Management Server: 2x Dell PowerEdge R420.

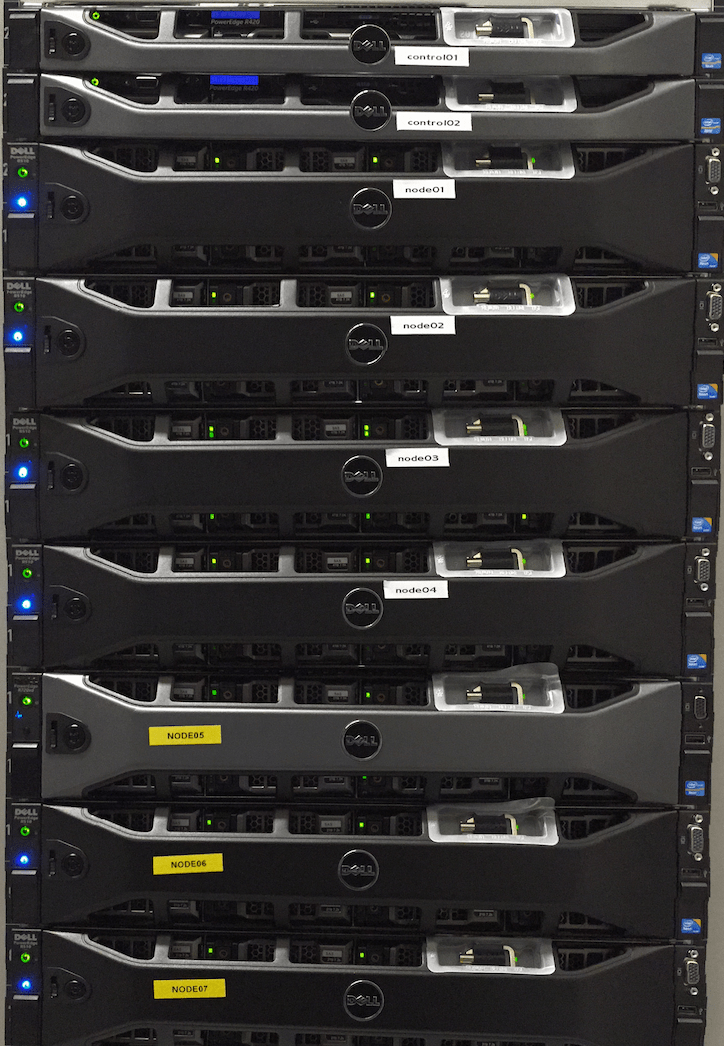

- Worker Server: 7X PowerEdge R510, 24CPU, 128GB RAM, 12x4TB HDD, 6x1GBit Networking.

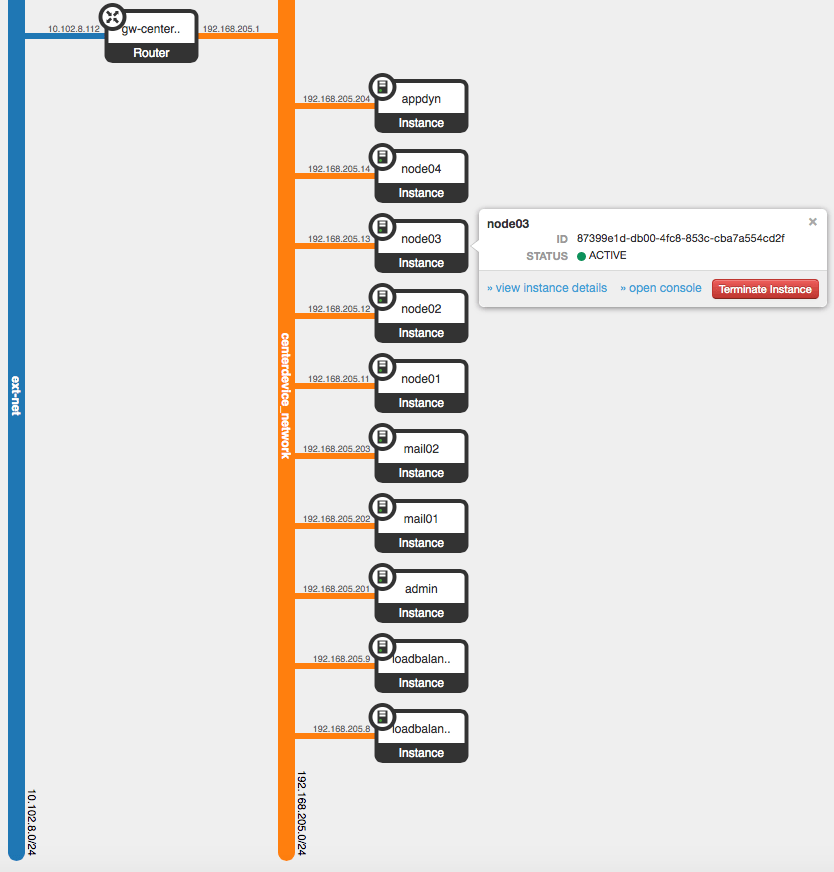

On top of that we run OpenStack as virtualization platform:

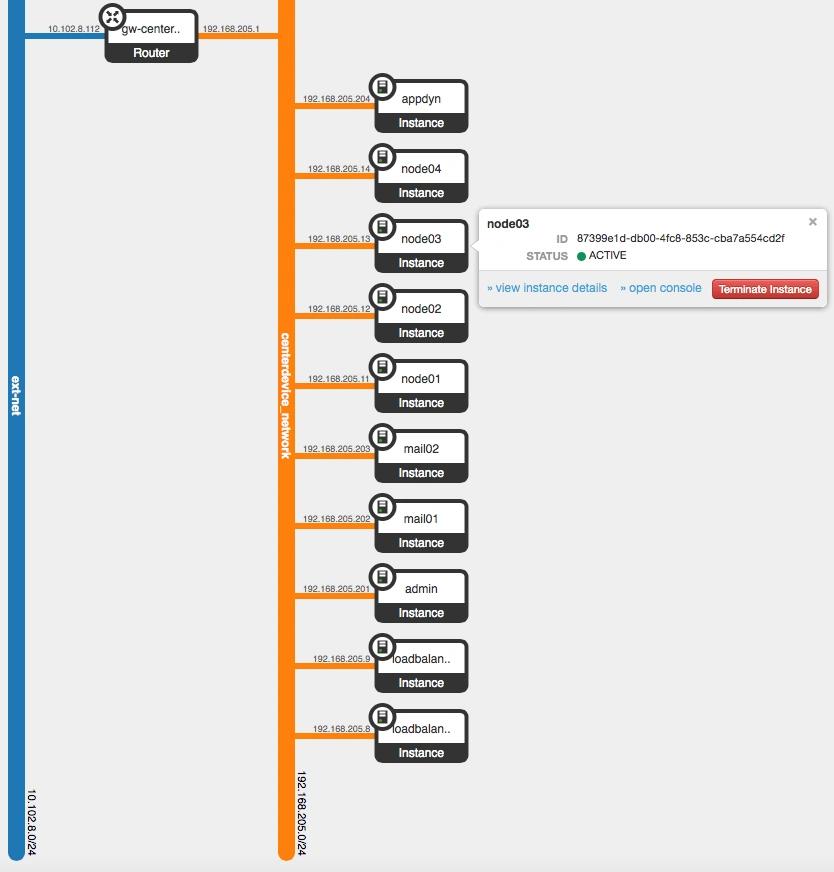

We run right now 4 “all in one machines”, which each come with 2 Tomcats, Import and Document Server, MongoDB and Elasticsearch. Everything is set up using Ansible, which is comparable to Chef or Puppet, but with reduced abstraction layers to be closer to shell commands operations people know. We like that simplicity a lot. (Colleagues have written more blogs about Ansible ). This is our “old” setup, which we plan to separate out into virtual machines in the next step. Besides that there are servers for e-Mail, AppDynamics monitoring and an admin gateway. You can find that “4” being mentioned in the AppDynamics screenshot above a few times.
Two HAProxy loadbalancers terminate SSL traffic and balance the internal and external traffic onto the worker nodes. HAProxy is powerful and allows plenty of configuration options. For example easy rate limiting , as described by my colleague Daniel.

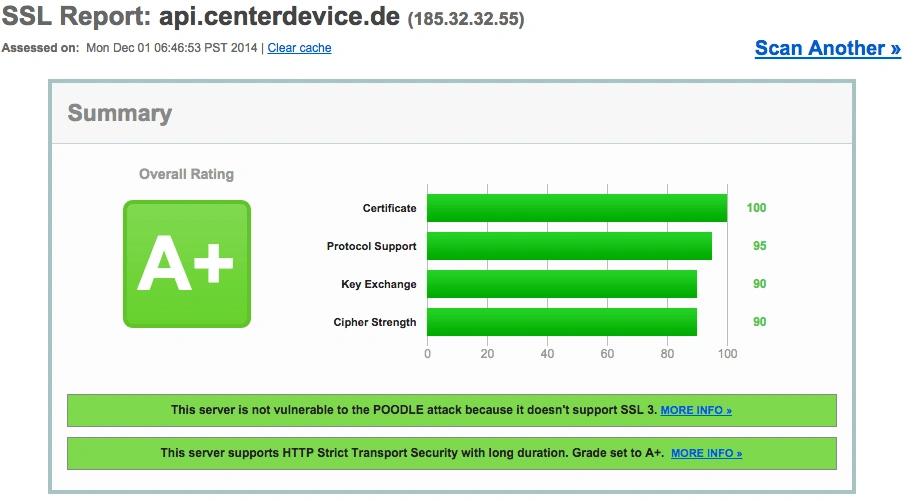

We take pride in running a A+ rated SSL setup .
All our apps use certificate pinning. They only work if the receive the certificate our server should serve. This eliminates any potential for man in the middle attacks, as attackers might be able to forge a trusted certificate, but it would never be identical to the ones baked into the apps. Apps using certificate pinning are guaranteed to have a secure connection with the intended server.
Our Plans
Next step will be to containerize components like mail server and document server, so that we can scale them even easier. While it looks like that “4” is a hardcoded number in many places it is actually not. For example starting a new document server would just work due to the way it communicates via RabbitMQ. Similarly a new Elasticsearch node would just work. Our local development environments already run Docker, so hopefully this is an easy step (TM). New hardware is already available, as seen in the pictures above, and is currently being provisioned.
